Salomon ICON ski race bindings bring World Cup-inspired technology to racers of every level, from developing juniors to elite competitors. The innovative ICON platform centralizes power transmission beneath the boot, improving edge engagement while reducing pressure at the ski's tip and tail for a smoother, more natural flex. The result is quicker transitions, increased rebound, and precise control through every turn.
Available in DIN ranges from 2–19, the ICON family includes FIS-ready race bindings and GripWalk-compatible models to match a wide range of racers, boot types, and disciplines. Metal-reinforced RS models deliver maximum precision and stability, while GripWalk versions provide added boot compatibility without sacrificing race-inspired performance.
Features
- Centralized Power Transfer channels energy directly beneath the boot for improved edge grip and responsiveness.
- Reduced Vertical Rigidity allows the ski to flex more naturally for increased rebound and smoother turn initiation.
- V-Shaped Race Toe enhances power transmission while reducing pressure at the ski's extremities.
- Metal-Reinforced RS Construction increases rigidity for precise steering and high-speed stability.
- 110mm Adjustment Range on ICON models accommodates a wide range of boot sole lengths.
- Race Platform Design delivers direct feedback and consistent control for alpine racing.

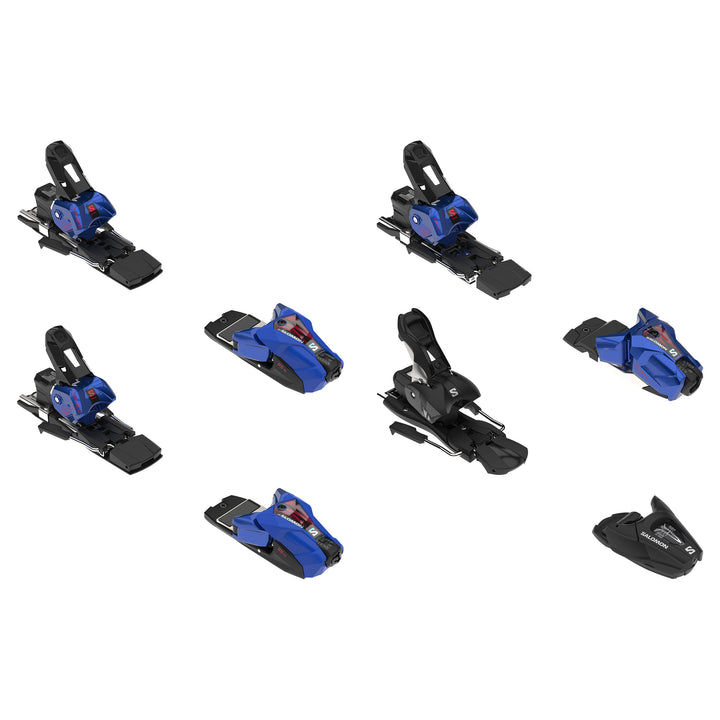

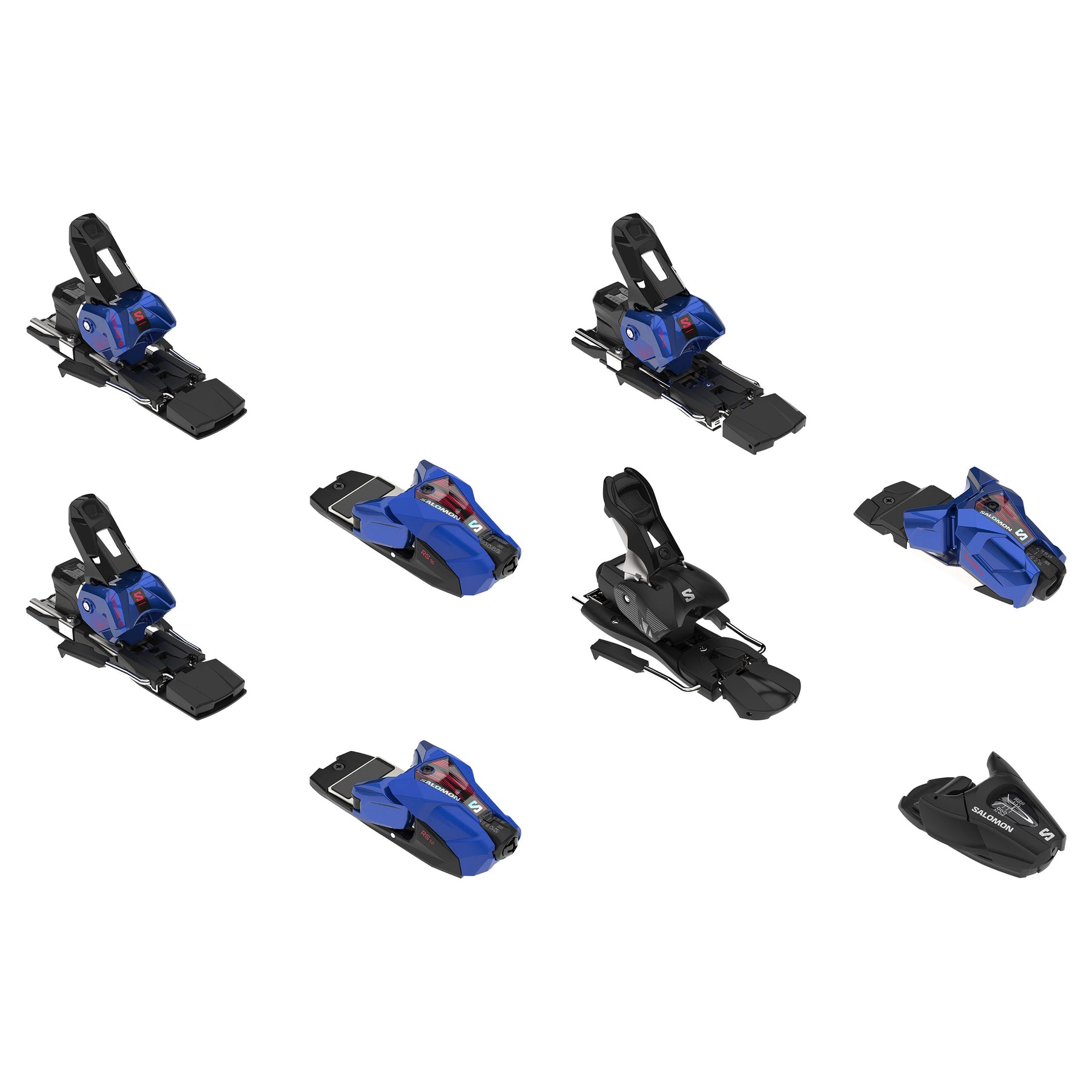

Models
- ICON RS 19 – DIN 11–19, World Cup race binding with maximum retention and full metal race construction.
- ICON RS 16 – DIN 8–16, high-performance FIS race binding for advanced and elite racers.
- ICON RS 12 – DIN 4–12, race binding for junior and lighter adult racers using Alpine race boots.
- ICON 12 GW – DIN 4–12, GripWalk-compatible race binding for Alpine and GripWalk boot soles.
- ICON 10 – DIN 3–10, lightweight race-inspired Alpine binding for developing racers.

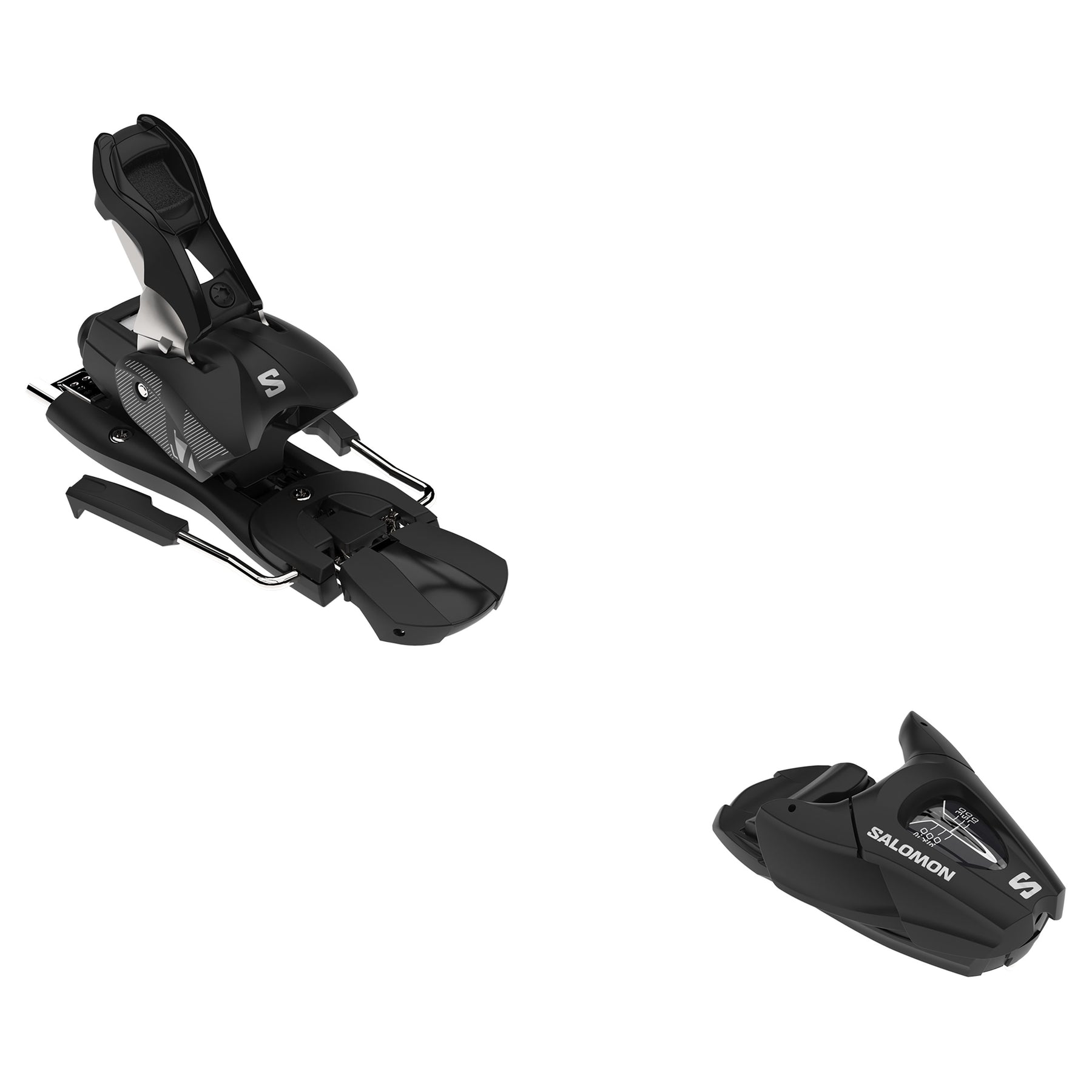

- L7 GW – DIN 2–7.5, lightweight junior GripWalk-compatible binding for developing racers using Alpine or GripWalk boot soles.
Specs
- DIN Range: 2–19 (model dependent)
- Brake Sizes: 75mm (ICON models); 80mm, 90mm, or 100mm (L7 GW)
- Adjustment Range: 110mm (ICON models); 28mm (L7 GW)
- Binding Height: 11.9–14.5mm (model dependent)
- Boot Compatibility: ISO 5355 Alpine (ICON RS models & ICON 10); ISO 5355 Alpine and ISO 23223 GripWalk (ICON 12 GW and L7 GW)
- Certification: FIS race models; TÜV certified on applicable models
- Recommended Use: SL, GS, SG, DH, race training, and competition
- Weight (1/2 Pair): 880–1600g (model dependent)
Ski bindings should be mounted, adjusted, and release-tested by a qualified ski technician.
Salomon ICON Binding Spec Chart
| Model | DIN | Brake Sizes | Height | Weight (1/2 Pair) | Boot Compatibility |
|---|---|---|---|---|---|
| ICON RS 19 | 11–19 | 75mm | 12.7mm | 1600g | ISO 5355 Alpine |
| ICON RS 16 | 8–16 | 75mm | 12.8mm | 1450g | ISO 5355 Alpine |
| ICON RS 12 | 4–12 | 75mm | 12.8mm | 1380g | ISO 5355 Alpine |
| ICON 12 GW | 4–12 | 75mm | 14.5mm | 1190g | ISO 5355 Alpine & ISO 23223 GripWalk |
| ICON 10 | 3–10 | 75mm | 14.5mm | 1180g | ISO 5355 Alpine |
| L7 GW | 2–7.5 | 80 / 90 / 100mm | 11.9mm | 880g | ISO 5355 Alpine & ISO 23223 GripWalk |
Technology
ICON Centralized Power Transfer
ICON technology concentrates power directly beneath the boot to improve edge engagement, maximize energy transfer, and provide more precise steering throughout the turn. Salomon's design channels up to 30% more power underfoot while reducing pressure at the ski's tip and tail for improved control and liveliness.
V-Shaped Race Toe
The V-shaped toe piece centralizes power transmission beneath the boot, creating more direct energy transfer while allowing the ski to flex more naturally. The result is improved edge grip, quicker transitions, and increased rebound between turns.
Reduced Vertical Rigidity
The ICON platform is engineered with reduced vertical rigidity to preserve the ski's natural flex pattern while maintaining excellent boot-to-ski coupling. This design delivers smoother turn initiation, better snow feel, and more consistent control.
Metal-Reinforced RS Construction
ICON RS models feature metal reinforcements in both the toe and heel for increased rigidity and stability. This race-focused construction provides more precise steering, direct feedback, and confidence at high speeds.
Flat Race Pedal
A fully flat race pedal creates a consistent connection between the boot and ski, improving control, rebound, and direct skier feedback throughout the turn.
GripWalk Compatibility
ICON 12 GW and L7 GW are compatible with both traditional Alpine boot soles (ISO 5355) and GripWalk boot soles (ISO 23223), providing added versatility while maintaining consistent release performance.
Race Platform Design
The low-profile ICON platform is engineered for precise power transmission, responsive edge engagement, and the consistent performance demanded by competitive alpine racers.
